尼龍防水接頭
商品簡述：
產品介紹：
採用UL合格之Nylon 6/6 製成，防火等級94-V2，夾緊圈為耐油橡膠材質，耐酸鹼，不易老化
特點：
- 夾緊圈經特殊設計，拉力強對電纜線不會造成損壞
- 不需將固定頭解體，電纜線可直接穿入上緊，省時又方便
顏色：
標準色為灰色、黑色或灰白色
應用領域：
一般機械控制箱，配電盤，事務機器，電器等製品電纜線固定用
-

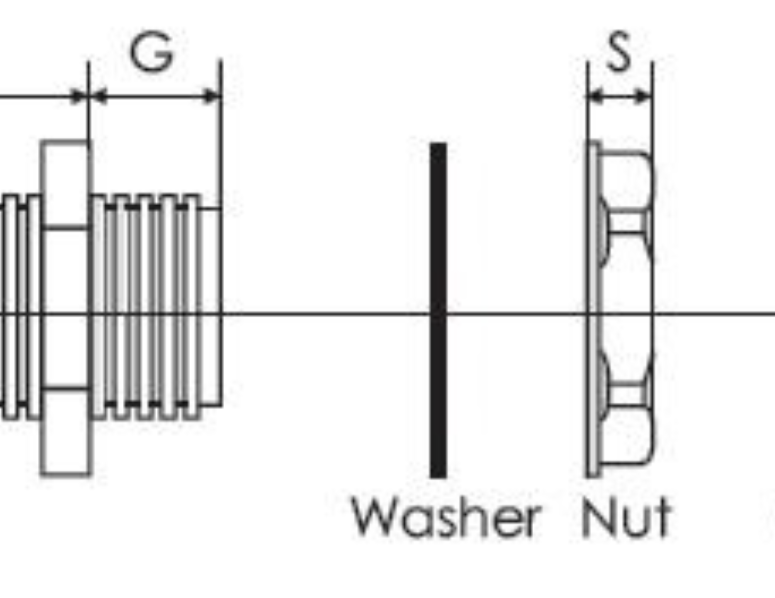

German PG Thread,According to DIN 40430 Unit:m / m 型號 Item No. 類型 Type Panel Hole Cable & Body Dimension Locking Nut Dimension A Cable Range Spanner Size H G S Spanner Size mm mm mm mm mm mm mm 5007 PG-7 12.5 3~6 15 21.7 8.1 5.3 15 5009 PG-9 15.2 4~8 19 28.2 7.5 5.6 19 5011 PG-11 18.3 5~9 22 26.2 7.9 5.4 22 5013 PG-13.5 20.3 6~12 24 31.5 8.9 6.4 24 5016 PG-16 22.4 8~14 27 31.7 9.3 6.5 29 5021 PG-21 28.3 10~18 33 38.6 11.0 7.0 33 5029 PG-29 36.9 16~25 42 41.5 11.0 7.0 42 5036 PG-36 47.4 22~32 54 51 14.0 9.0 54 5042 PG-42 54.4 28~38 59 54.0 14.5 9.0 59 5048 PG-48 59.7 36~44 64 54.0 15.5 9.0 64 German PG Thread,According to DIN 13 Unit:m / m 5007M M-12 12.3 4~7 15 23.7 11.0 5.3 15 5009M M-16 16.3 5~10 22 27.2 11.0 5.4 22 5013M M-20 20.3 6~13 27 33.8 12.0 6.5 29 5016M M-25 25.4 10~17 33 39.6 12.0 7.0 33 5018M M-32 32.4 14.~21 42 43.1 14.0 7.0 42 5020M M-40 40.4 19~28 54 51.0 14.0 9.0 54 5022M M-50 50.4 23~35 59 54.0 16.0 9.0 59 5024M M-63 63.4 32~48 68 59.0 17.0 9.0 68 American NPT Thread in inches Unit:m / m 型號 Item No. 類型 Type Cable Range Cable & Body Dimension Spanner Size H G 5009N NPT-3/8 4~8 22 28.0 14.5 5013N NPT-1/2 6~12 24 31.5 12.9 5021N NPT-3/4 10~18 33 38.7 15.1
-
